Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications

Detalhes do produto:

Condições de Pagamento e Envio:

Quantidade de ordem mínima: 1
Melhor preço Contato

Informação detalhada
Modelo No.: VS-063DA Formulário de conexão: Flange
Estrutura: Vedação central Forma de vedação: Força selada
Haste da válvula: Normal Pressão de trabalho: Pressão média (2,5mpa <pn <6,4mpa)
Temperatura de trabalho: Temperatura média (120°C Material de vedação: Selado macio
Corpo da válvula: Chapas metal Especificação de tamanho: 2 polegadas a 24 polegadas
Pressão do ar do atuador: 80-120 psi Vida do ciclo do atuador: 1 milhão de ciclos
Design do atuador: pinhão da cremalheira Classificação à prova de intempéries: IP66 e IP68
Padrão de montagem: ISO5211
Destacar:

Mid-Pressure Air Actuated Butterfly Valve

,

Medium Temperature Butterfly Valve

,

2 inch-24 inch Pneumatic Butterfly Valve

Descrição de produto

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
  • Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
  • Extended lifespan with unique wave line seat and special disc shape design
  • Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
  • Increased flow capacity through unique profile disc and two-piece shaft design
  • Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Rack pinion design for reliable operation
  • Highly visible valve position indicator
  • Type IP66 & IP68 weatherproof rating
  • Anodized aluminum body with epoxy-polyester covers
  • Compatible with dry or lubricated pilot air
  • Namur & ISO mounting options
Product Images

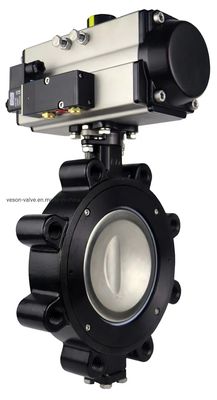

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 0

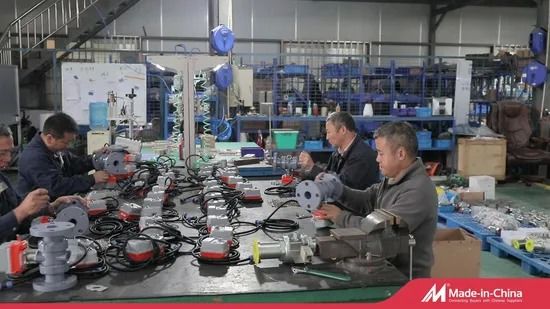

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 1

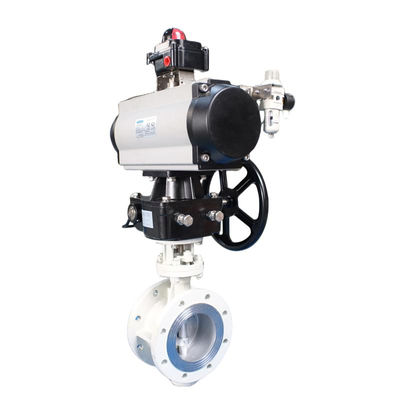

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 2

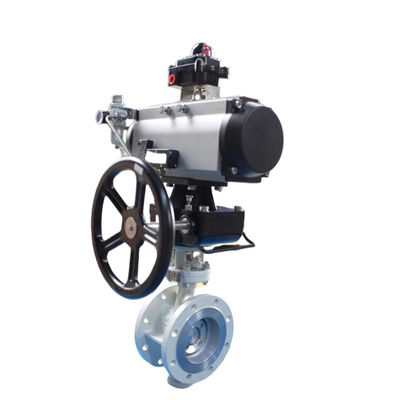

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 3

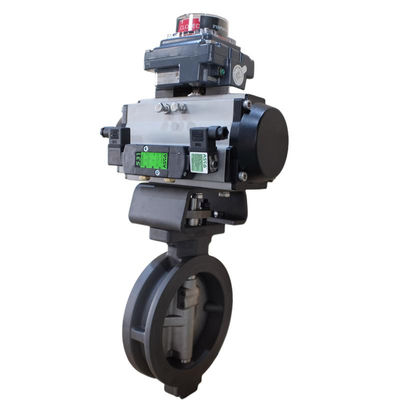

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 4

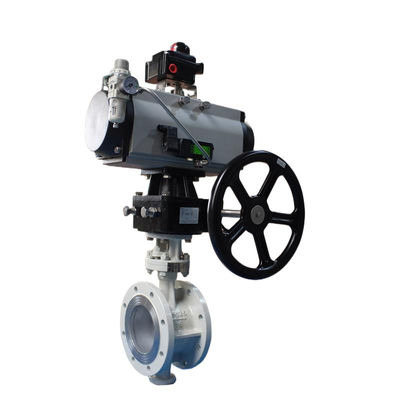

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 5

etiqueta:

válvula de ar pneumática

válvula de bola pneumática

válvula de controle pneumática da pressão
