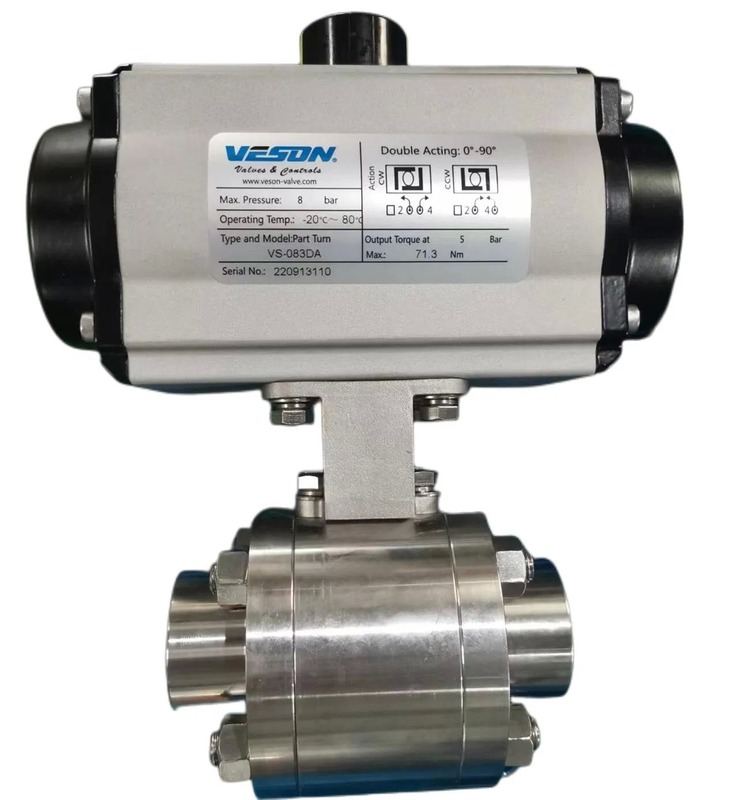

3 Piece Pneumatic Ball Valve with ASME Class 800 and ASME Class 1500 Forged Steel Floating Ball Valve
Detalhes do produto:
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|
|
Informação detalhada |
|||
| Tipo de canal: | Direto através do tipo | Tipo de estrutura: | Válvula de esfera flutuante |
|---|---|---|---|
| Tipo de válvula: | Válvula de esfera flutuante | Tipo de furo: | Furo regular (reduzido), furo completo |
| Classe de pressão: | ASME Classe 800, 1500 | Tipo de conexão: | Extremidade parafusada ou rosqueada |
| Faixa de tamanho: | 15 mm a 50 mm | Material corporal: | ASTM A 105, ASTM A 182 F 304, ASTM A 182 F 316, ASTM A 182 F 304L, ASTM A 182 F 316L |
| Material da bola: | ASTM A 351 gr. Cf 8 / cf 8m, ASTM A 182 F304 / F316, ASTM A 351 GR. Cf 3 / cf 3m, ASTM A 182 F304L / | Material do caule: | ASTM A 276 T (304/116, 304L / 316L, 410) |
| Material do assento da bola: | PTFE Virgin / 25% de vidro preenchido, Peek / Delrin / Grafoil | Material de embalagem da glândula: | PTFE Virgin / 25% de vidro cheio, Grafoil |
| Material de Stud & Nut: | ASTM A 193 gr. B7 / A 194 gr. 2H, SS 304 / SS 316 | Tipo de operação: | Alavanca manual, atuador pneumático, atuador elétrico |
| Material do assento: | PTFE, Peek, Delrin, Grafoil | ||
| Destacar: | 3 Piece Pneumatic Ball Valve,ASME Class 800 Floating Ball Valve,ASME Class 1500 Forged Ball Valve |
||
Descrição de produto
Pneumatic Actuator 3 Piece Floating Ball Valves Forged Ball Valve with Pneumatic Actuator
Our Veson Two Way Floating Ball Three Piece Forged Steel Ball Valve is available in Regular (Reduced) Bore and Full Bore configurations. Designed for demanding applications, it meets ASME Class 800 and 1500 standards with screwed or threaded end connections in sizes ranging from 15 mm to 50 mm.
Material Options
Available in multiple high-performance materials including ASTM A 105 (Forged Carbon Steel), ASTM A 182 F 304/304L (Forged Stainless Steel 304/304L), and ASTM A 182 F 316/316L (Forged Stainless Steel 316/316L). Operation options include Manual Lever, Pneumatic Actuator, and Electrical Actuator.
Key Features
- Premium quality forged body construction
- Heavy-duty, rugged design for industrial applications
- Extended service life with smooth operation
- Low operating torque requirements
- Positive shut-off capability
- No lubrication required for maintenance
Design & Test Specifications
| Component | Material Specifications |
|---|---|
| Body & End Piece |
ASTM A 105 - Forged Carbon Steel ASTM A 182 F 304/304L - Forged Stainless Steel ASTM A 182 F 316/316L - Forged Stainless Steel ASTM A 182 F 11/F 22 - Alloy Steel |
| Ball |
ASTM A 351 GR. CF 8/CF 8M (SS 304/SS 316) ASTM A 182 F304/F316 (SS 304/SS 316) ASTM A 351 GR. CF 3/CF 3M (SS 304L/SS 316L) ASTM A 182 F304L/F316L (SS 304L/SS 316L) |
| Stem |
304/316 (SS 304/SS 316) - ASTM A 276 T 304L/316L (SS 304L/SS 316L) - ASTM A 276 T ASTM A 276 T - 410 (SS 410) |
| Ball Seat & Body Seal |
PTFE Virgin/25% Glass Filled - GFT/Carbon Filled - CFT PEEK/Delrin/Grafoil - Graphite Ring |
| Gland Packing |
PTFE Virgin/25% Glass Filled - GFT/Carbon Filled - CFT Grafoil - Graphite Ring |
| Stud & Nut |
ASTM A 193 GR. B7/A 194 GR. 2H S.S. 304/S.S. 316 |
