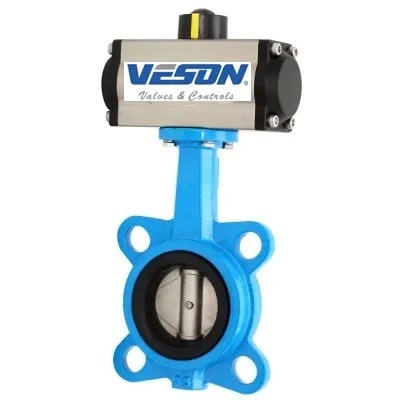

Pneumatic Lug Butterfly Valve EPDM Seal Mid-Pressure
Detalhes do produto:
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 |
|---|
|
Informação detalhada |
|||
| Connection Form: | Lug Support | Structure: | Centre Sealing |
|---|---|---|---|
| Seal Form: | EPDM | Valve Stem: | Normal |
| Work Pressure: | Mid-Pressure (2.5mpa< Pn <6.4mpa) | Working Temperature: | Normal Temperature (-40°C |
| Seal Surface Material: | Soft Sealed | Valve Body: | Casting |
| Valve Size: | 2 inch-24 inch | Pressure Range: | ANSI Class 125~150(PN10-PN16) |
| Temperature Range: | 320°F to 1000°F / -196ºC~ 540ºC | Body Materials: | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Disc Materials: | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Al-Bronze | Seat Materials: | EPDM, NBR, VITON |
| End Connection: | Wafer, Lug, Double Flange | ||
| Destacar: | Pneumatic butterfly valve EPDM seal,Mid-pressure butterfly valve pneumatic,Lug butterfly valve with warranty |
||
Descrição de produto
Pneumatic Operated Lug High Performance Butterfly Valve
Product Specifications
| Attribute | Value |
|---|---|
| Connection Form | Lug Support |
| Structure | Centre Sealing |
| Seal Form | EPDM |
| Valve Stem | Normal |
| Work Pressure | Mid-Pressure (2.5mpa < Pn <6.4mpa) |
| Working Temperature | Normal Temperature (-40°C |
| Material of Seal Surface | Soft Sealed |
| Valve Body | Casting |
| Application | Industrial Usage, Water Industrial Usage |
| Transport Package | Plywood Case |
| Specification | 2 inch-24 inch |
| Trademark | VESON or Customer's |
| Origin | China |
| HS Code | 84123900 |
| Production Capacity | 50000PC / Y |
Product Description
Pneumatic Operated Wafer Lug High Performance Butterfly Valves are engineered for critical applications in chemical processing, hydrocarbon industries, pulp & paper production, water/wastewater treatment, and HVAC systems. These valves deliver exceptional longevity and reliable performance, significantly reducing total cost of ownership.
Key Features
- Rigorously tested to meet demanding industry performance requirements
- Designed for both shutoff and throttling control of liquids and gases
- Dynamic PTFE seat provides bubble-tight shutoff in both directions
- Single offset disc design ensures lower torque and extended cycle life
- NACE trim available for specialized applications
Product Range
- Valve size: 2" ~ 60" (DN50-DN1500)
- Pressure: ANSI Class 125~150 (PN10-PN16)
- Temperature range: -196°C to 540°C (-320°F to 1000°F)
- Body materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
- Disc materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Al-Bronze
- Seat options: EPDM, NBR, VITON
- End connection types: Wafer, Lug, Double Flange
Technical Specifications
- Design standards: API 609, BS 5155, EN593, DIN 3354
- Face to Face: ASME B16.34
- End Flange: ASME B16.5
- BW End: ASME B16.25
- Screwed End: ASME B1.20.1
- Test standards: ASME B16.34, API 598, DIN 3230
- Marking: MSS SP25
- Special: NACE MR-01-75
Design Features
- Available in Lug, Wafer or Flange end configurations
- Concentric design for optimal performance
- Bi-directional service capability
- Zero leakage operation
- Low torque requirements
- Self-cleaning mechanism
- Blowout-proof stem design
- ISO 5211 top flange
- Optional extended stem design available
