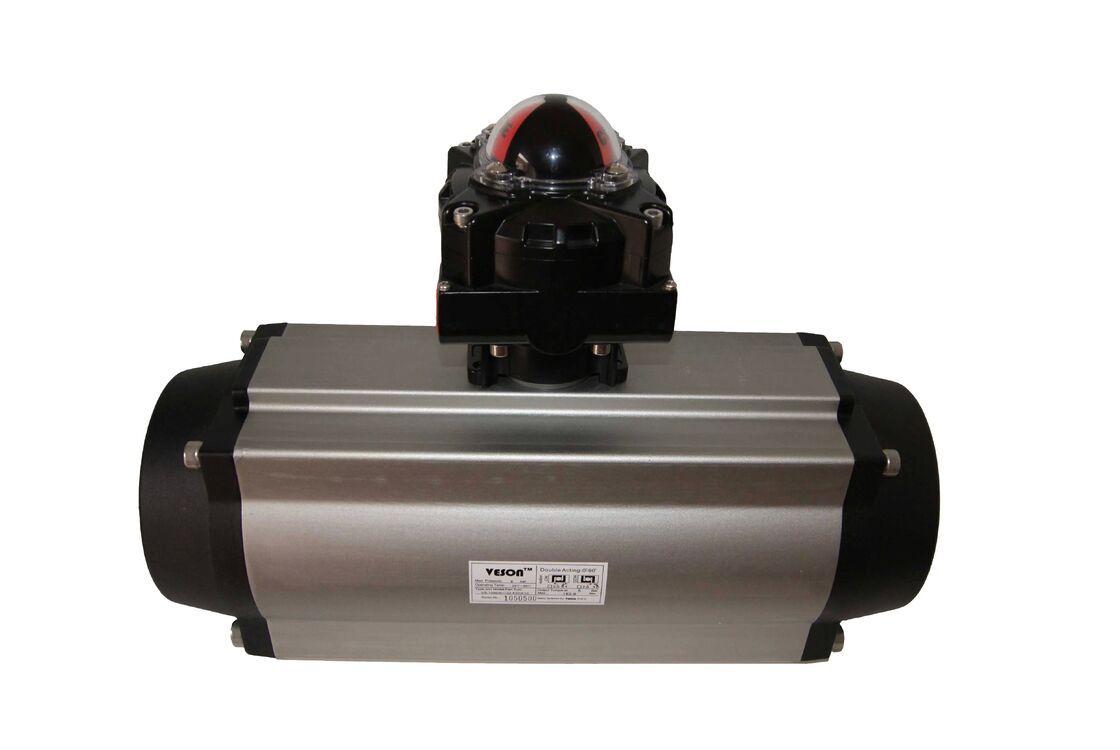

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
Detalhes do produto:
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|
|
Informação detalhada |
|||
| Modelo não.: | VS-210 | Poder: | Pneumático |
|---|---|---|---|
| Padrão: | Padrão | Direcção da pressão: | cilindro de dupla ação |
| Tipo de efeito duplo do cilindro: | Rod Cylinder dobro | Tipo especial do cilindro: | Número de cilindros |
| Tipo de cilindro combinado: | Cilindro pressurizado | Padrão de projeto: | ISO5211 DIN3337 |
| Pacote de Transporte: | Pacote de casos com madeira compensada | Especificação: | 1 polegada a 12 polegadas |
| Marca registrada: | Veson ou Cusomer "S. | Origem: | China |
| Código Hs: | 84123900 | Capacidade de produção: | 50000pc / y |
| Destacar: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Descrição de produto
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
