Detalhes do produto:

Condições de Pagamento e Envio:

Quantidade de ordem mínima: 1
Melhor preço Contato

Informação detalhada
Modelo não.: VS-270 Padrão: Padrão
Direcção da pressão: cilindro de dupla ação Tipo de efeito duplo do cilindro: Cilindro Comum
Tipo especial do cilindro: Número de cilindros Tipo de cilindro combinado: Cilindro pressurizado
Código de design: ISO5211 Suprimento de ar: 40-100PSIG
Pacote de Transporte: Pacote de casos com madeira compensada Especificação: CE, SGS
Marca registrada: Veson ou Cusomer "S. Origem: China
Código Hs: 8481804090 Capacidade de produção: 50000pc / y
Destacar:

Pneumatic rack and pinion actuator with 3878NM torque

,

VDI/VDE3845 standard pneumatic actuator

,

40-100psig air supply rack actuator

Descrição de produto

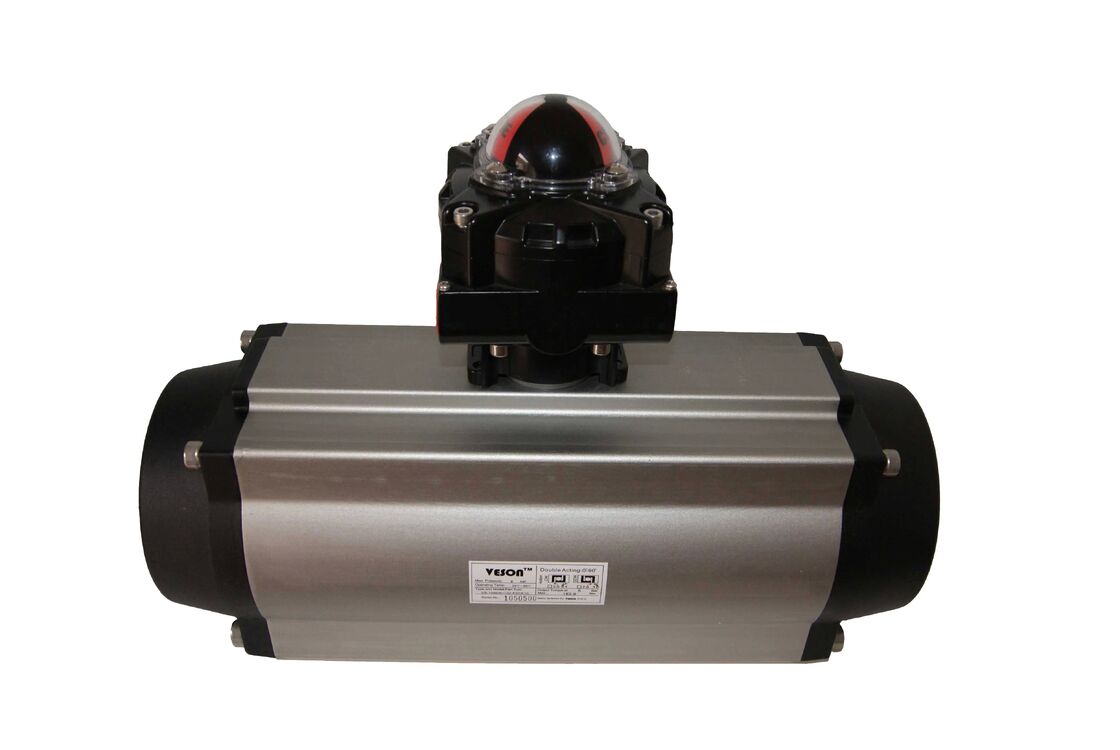

VS-270 (rack& pinion) have the following features.
> The output torque: Double: 3878NM; Single: 560~1344Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.

> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.

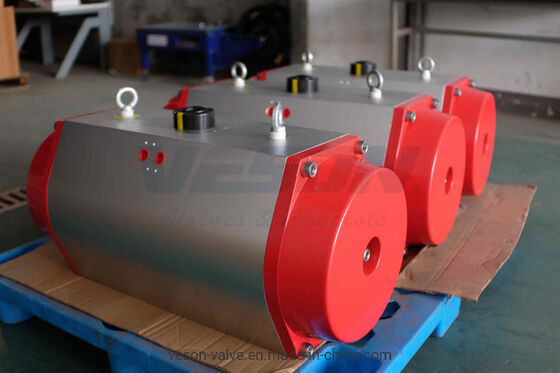

> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
