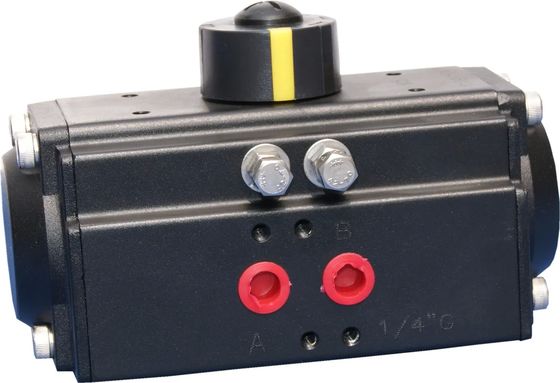

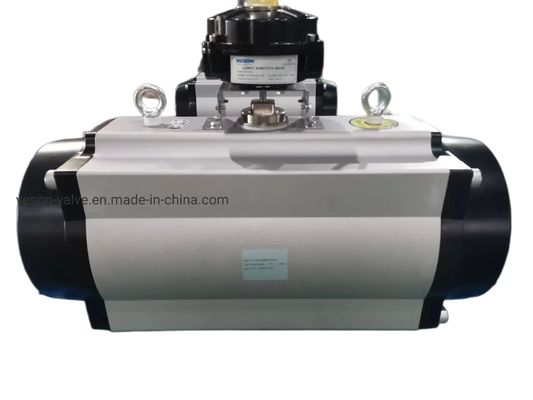

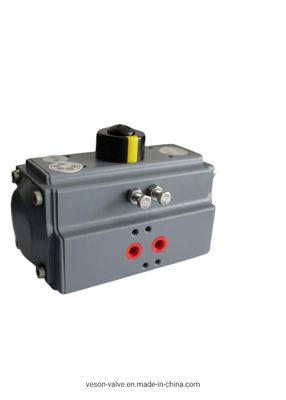

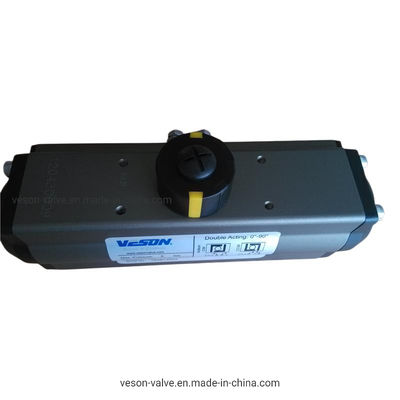

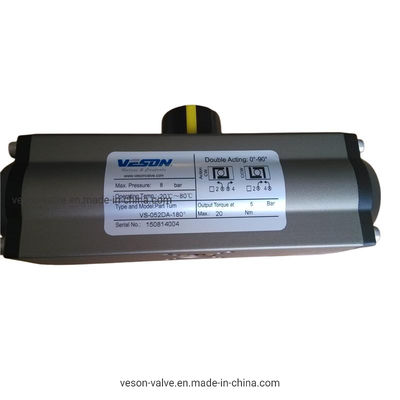

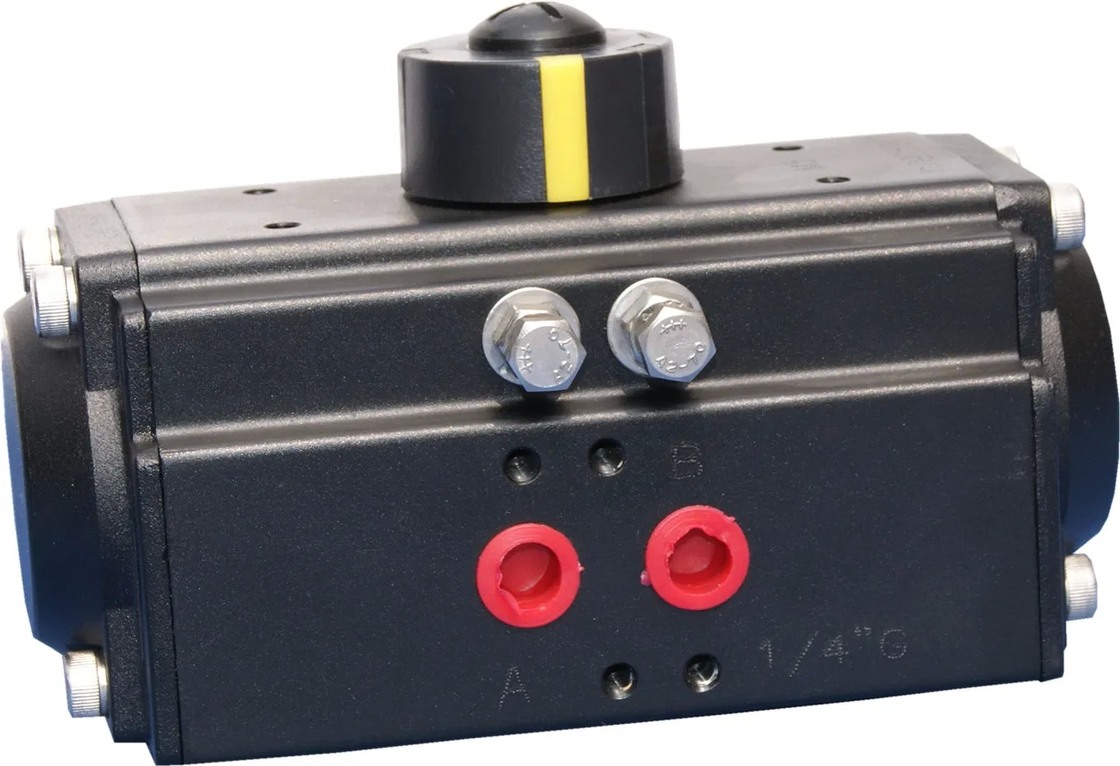

Hard Anodized Aluminum Pneumatic Cylinder with Epoxy Coated End Caps and Travel Adjustment ±5º
Detalhes do produto:
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|
|
Informação detalhada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Poder: | Pneumático |
|---|---|---|---|
| Direcção da pressão: | cilindro de dupla ação | Material do pinhão: | Aço de liga endurecido |
| Revestimento de pinhão: | Banhado a níquel (acima de 15um) | Material do Corpo do Atuador: | Extrusão de alumínio |
| Tratamento Corporal do Atuador: | Anodizado duro (acima de 30um) | Material do tampão de extremidade: | Alumínio de fundição |
| Tratamento de tampa final: | Revestido com epóxi (acima de 80um) | Material do pistão: | Alumínio de fundição |
| Tratamento de pistão: | Anodizado duro (acima de 30um) | Ajuste de viagem: | ±5º em ambas as posições |
| Material de mola: | Aço de alta elasticidade | Revestimento de Primavera: | Cola Epoxy revestida |
| Material dos rolamentos: | Composto altamente durável | ||
| Destacar: | Hard Anodized Aluminum Pneumatic Cylinder,Epoxy Coated Pneumatic Cylinder,Travel Adjustment ±5º Pneumatic Cylinder |
||
Descrição de produto
China Manufacturer Pneumatic Cylinder
Product Features
- Indicator: A position indicator with Namur mounting is included on all VESON pneumatic actuators for mounting accessories.
- Pinion: Features a hardened alloy steel pinion that is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Constructed with hard anodized (over 30μm) aluminum extrusion for wear and corrosion protection while minimizing piston friction. Epoxy Coated and PTFE Coated options available.
- End Cap: Made from epoxy coated (over 80μm) die casting aluminum for maximum resistance against corrosive elements. PTFE Coated treatment available as an option.
- Piston: Precisely balanced with hard anodized treatment (over 30μm) die casting aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
- High Performance Springs: High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
- Bearings & Guides: Highly durable compound material provides high thrust stability with minimum friction and long operational life.
Deseja saber mais detalhes sobre este produto
